Product selection from
SQUARE D

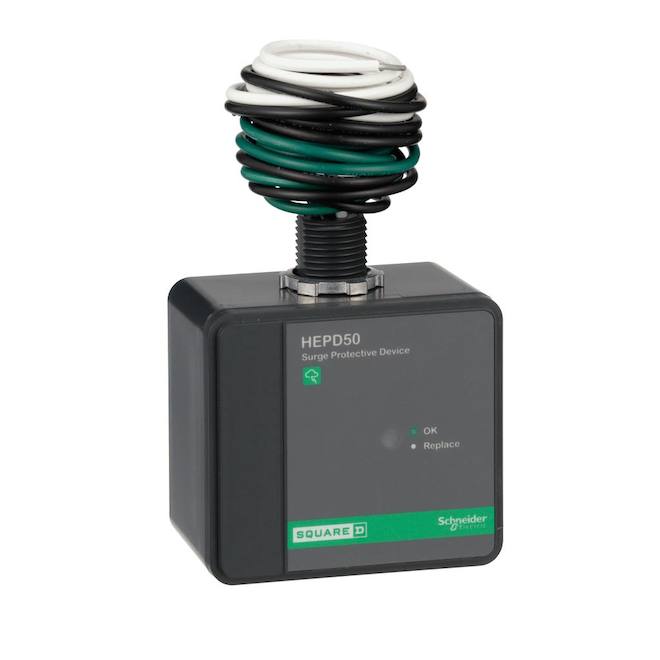

Square D 120/240 V Type 2 Surge Protector
Article #02655154
Item #000507277
Model #HEPD50
Format 120/240V
$
199
Each
This item is not currently available for immediate purchase, but can be ordered by visiting the selected store.
Delivery
Get it by Wednesday, April 22
Will ship next business day
Most orders will ship next business day. Some orders may take up to 7-14 days (where inventory is not available in store). Delivery time may vary due to factors beyond our control. You will receive an email when your order has shipped. See all details.
Gift cards are delivered 2 to 5 days following the confirmation of your order in major urban areas and within 7 business days for remote locations. Gift Cards can be delivered across Canada, except the Yukon, Nunavut, Northwest Territories and Northern Quebec. See all details.
Sold online only. Total price includes delivery without any additional fees. Delivery time may vary due to factors beyond the control of RONA. Some restrictions may apply for remote areas. Signature may be required. Deliveries are made to threshold or curbside only, subject to carrier discretion.
The earliest delivery date displayed is only an estimate. The actual delivery date may change based on availability of products, or due to other circumstances beyond our control. Appliance delivery date can be selected in the checkout. If there is no option to schedule your appliance delivery, our team will contact you to schedule a delivery within 24 hours. Learn More.
RONA's third-party partners handle all express deliveries. Only available for select in-store items in sufficient stock at the participating selected store. Delivery address must be within delivery zone of the selected participating store. Weight limit of 1,475 Kg (3,250 lbs) per order. Not available on national/provincial holidays. Service may not be available due notably high in-store traffic, bad weather conditions or any other situation affecting the availability of the service. See all details.
Our expert center will contact you to schedule a delivery within 24 hours. The delay for delivery is an estimate and may vary according to the availability of products, or due to other circumstances beyond our control. Delivery prices only include curbside delivery, except for appliances. Delivery service is only available within a 50 km radius from the selected store (75 km for RONA+ stores). Additional charges may apply for installation. We will not leave deliveries at an unattended site – note that additional delivery charges may apply for subsequent delivery attempts. See all details.
Add to Cart
Warranty
3-year
Add to Cart
AI-Generated answer
Description
HEPD whole house devices are designed to deliver AC surge protection for the entire AC power system in a home. HEPDs are compact in size and are designed to protect AC wires in the home from surges that could affect home electronics and appliances not connected to surge strips. For use on 120/240 VAC single phase, 3 wire systems with an isolated ground. This device provides 25 kA of short circuit protection and 50 kA of surge protection per phase. The surge protection device is in a NEMA 4X housing. The surge protection device is 3.23 inches tall, 3.72 inches wide and 2.10 inches deep. The surge protection device is UL listed.
- NEMA 4X
- Nominal discharge current 10 kA
- Surge current 50 kA per phase
- Voltage rating 120/240 V AC
- 1 LED green normal operation
- 1 phase
- 3-wire (isolated ground)
Product specifications
Voltage Protection Rating L-L
1000-V
Voltage Protection Rating L-G
600-V
Voltage Protection Rating L-N
600-V
Voltage Protection Rating N-G
900-V
Warranty
3-year
Height(ft)
.269166559
Width(ft)
.492499803
Depth(ft)
.669166399
Weight(lb)
.9
Weight(Oz)
14.4
Number of Leads
0
Rating in Joules
0
Coaxial Lines Protected
1
Package Quantity
1
Maximum Amperage
10 kA
Nominal Discharge Current
10kA
Water Resistant
No
Weather Resistant
No
Width(mm)
150.114
Short Circuit Current Rating
25 kA
Height(in)
3.23
Weight(Gr)
408.2328
Width(in)
5.91
Surge Current Protection Per Phase
50-kA
Depth(in)
8.03
Color/Finish Family
Black
Use Location
Indoor and outdoor
Line Protection
L-N-L-G-L-L-N-G
Housing Material
Metal and plastic
Wire Gauge
N/A
Series Name
N/A
Application
Residential
Surge Protection
UL
Safety Listing
UL safety listing
Grounded
Yes
Indicator Light
Yes
Type
Surge protective device
SPD Type
Type 1
Manufacturer Color/Finish
Black
File/Certification Number
CSA C22.2 - cUL - UL 1449:ed. 4 type II
Maximum Continuous Operating Voltage
150 V
Enclosure Rating
NEMA 4X
Connection Type
Next to load center mount
Country of Origin
MX - MEXICO
