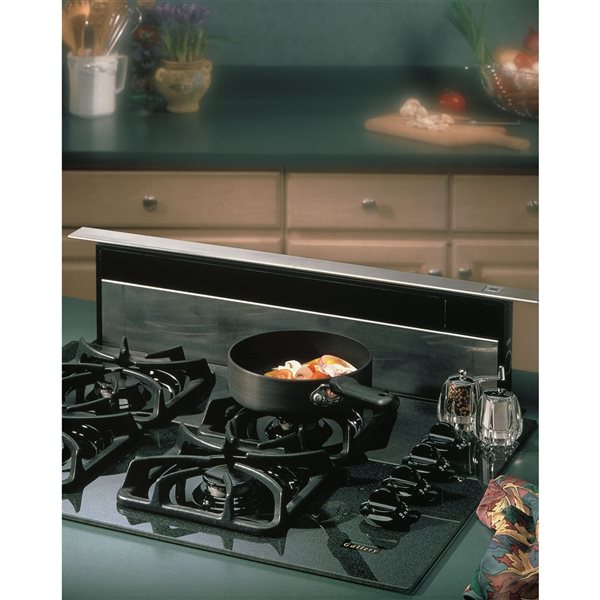

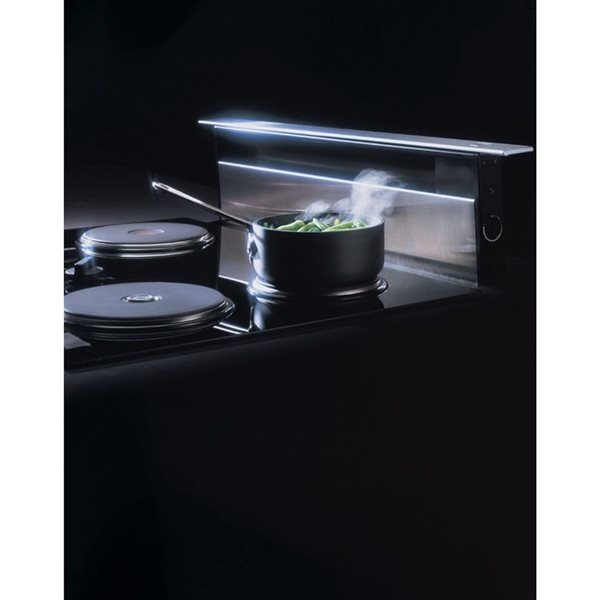

Broan Elite 36-Inch Downdraft Range Hood, 600 Max Blower CFM, Stainless Steel
Article #331009081
Model #273603
This item is not currently available for immediate purchase, but can be ordered by visiting the selected store.
Add to Cart
Warranty
1-year
Add to Cart
Description
Innovative downdraft system compatible with virtually all self-contained cooktops. Sleek, trim styling complements any cooktop style or colour. Automatically raises into position with the touch of a button. Disappears flush with cooktop surface. Space-saving design lets you make the most of precious, under-counter cabinet space. Infinitely adjustable speed control is flush with the side of the unit; inconspicuous, yet easy to reach and simple to use. Blower discharges right, left or down and slides side-to-side to ease installation (insufficient space for built-in ovens). Front access panel allows easy cleaning.
- Model 273603 is powered by 600 max blower CFM
- Compatible with virtually all self-contained cooktops
- Disappears flush with the cooktop surface
- Space-saving design lets you make the most of precious, under-counter cabinet space
- Infinitely adjustable speed control is flush with the side of the unit
- Blower discharges right, left, or down and slides side-to-side to ease installations (insufficient space for built-in ovens)
Product specifications
Actual Depth(in)
7
Sones Rating - Horizontal
3
Base Warranty Parts
12
Actual Height(in)
29.5
Base Warranty Labor
12
Actual Width(in)
36
Maximum Air Volume
500
Hoods Warranty Labor (months)
12
Hoods Warranty Parts (months)
12
Sones Rating - Vertical
3
Series Name
Broan Elite 27000 Series
Fingerprint-Resistant
No
Package Contents
1 hood
Appliance Color/Finish
Stainless steel
Duct Type
3.25 x 10 or 6-in round
Manufacturer Color/Finish
Stainless Steel
Removable Grease Filter
Yes
Telescoping
Yes
Sub-Brand
N/A
Charcoal Filter
No
Charcoal Filter Included
No
Common Range Hood Size
36 inch
Damper Included
No
Exhaust Fan Controls
Rotary
Warranty
1-year
ADA Compliant
No
Cooktop Lights
No
ENERGY STAR Certified
No
Vent Type
Ducted
Broan Elite 36-Inch Downdraft Range Hood, 600 Max Blower CFM, Stainless Steel is rated
out of
5 by
16.
Rated 1 out of
5
by
Chadimus from
Installed less than a year. Up/Down wont stop
This was bought in 2021 but wasn't installed until a year ago due to covid delays. Its currently unplugged because it wont stop going up and down. Want someone to come out and fix it? It is the same cost as a new one. Extremely disappointing.
Date published: 2023-09-09
Rated 2 out of
5
by
byost from
The "Up/Down" function doesn't work properly
hi, hoping I get some help from broan here in this forum, I have the 2730/2736 eclipse and installer just installed it. Problem is, the down draft goes "up and down, up and down" and doesn't stop. The other thing is the "flap" is slightly bent, it bows upward in the middle.
Date published: 2023-07-26
Rated 5 out of
5
by
J Nelson from
Very nice unit.
Replaced another brand. Fit in the same opening, had to do a little venting work but went well.
Date published: 2021-12-17
Rated 4 out of
5
by
kibeom from
switch problem?
I really like this product--which has been working perfectly in our kitchen. One problem that we are having lately is that when we turn it on, the hood is coming up but automatically going down. What do you think it's problem? Your advice would be very much appreciated. Thanks.
Date published: 2021-04-25
Rated 4 out of
5
by
Rodolfo from
Box size (dimensions) and weight
Hi
I’d like purchase this one #273603 but I need shipment for outside USA. I need exactly the dimensions of box (not only product) and the weight with box. Thanks
Date published: 2021-04-16
Rated 5 out of
5
by
xpmeza from
fumes
I don't have an exit from the kitchen to the exterior, how can I deal with the fumes?
Date published: 2021-01-01
Rated 4 out of
5
by
Rotaryrkt from
Blower Will Not Come On
Bought a house with this unit installed and it will raise and lower, but the blower will not turn on. Appliance Tech won't fix it and my electrician won't fix it either...lol! Is there a special Broan service tech out there that works on these units?
Date published: 2020-12-02
Rated 5 out of
5
by
CMPhillip from
Broan Down draft..
I Love my Broan downdraft. It has different settings to remove steam and smoke from my pots.
Date published: 2020-06-30
