 Product selection from BROAN

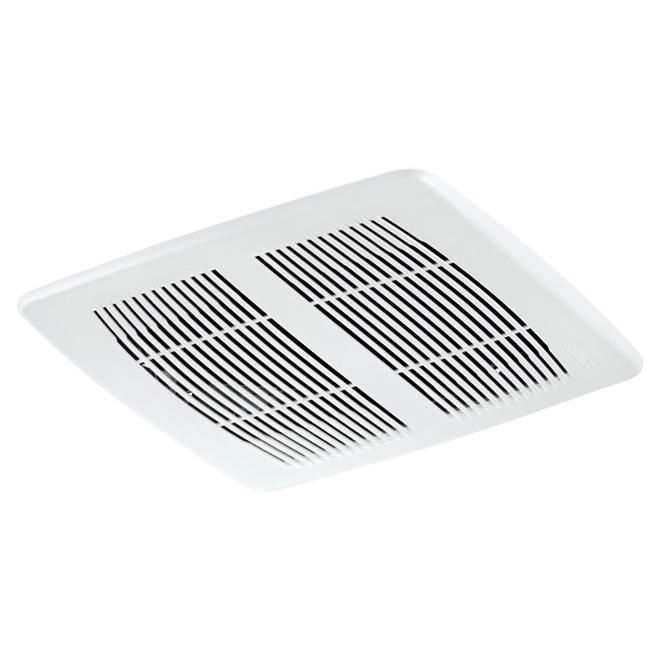

Bathroom Fan - Invent Series - 90 CFM

Article #15405310 Item #000382686 Model #AR90C Format 90CFM
Bathroom Fan - Invent Series - 90 CFM
Bathroom Fan - Invent Series - 90 CFM
icon-zoom
112 . 99 Each
This item is not currently available for immediate purchase, but can be ordered by visiting the selected store.
Sign up to get email notification
You will be the first to know once the item is back in stock
Hassle-Free Returns Return or exchange within 90 days. Exceptions apply. See details.
Warranty 1-year
Sign up to get email notification
You will be the first to know once the item is back in stock
AI-Generated answer
icon-wishlist

Description

This Invent Series bathroom fan from Broan reduces humidity in a bathroom up to 85 square feet. A retrofit installation can be done entirely in the room. No attic access required. EzDuct connector. Damper with TrueSeal technology. Reduces air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts. UL listed for use over a tub or a shower with a GFCI circuit connection. Includes foldable mounting ears, a new damper and housing technology that improves building airtightness. 1-year warranty.
  • 90 CFM reduces humidity to quickly eliminate fogged mirrors and manage moisture in bathrooms up to 85 square feet, so your vision will always be clear and your surroundings will always be comfortable
  • 2.0 Sones for quiet performance , enough sound to know your fan is on
  • Retrofit installations can be done entirely from the room-side u no attic access required, this means a faster, easier installation
  • Connector can be installed room-side with no attic access required
  • UL listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
  • Can be installed in a wall if mounted 8-ft or more above the floor
  • Brighter white grilles blend in to match most common ceiling paint
  • Corrosion resistant galvanized steel housing stands up to moisture

Product specifications

Base Warranty Labor(Months)
12
Air Movement(CFM)
90
Automatic Shut-Off
No
Base Warranty Parts(Months)
12
Bluetooth Compatibility
No
Bluetooth Enabled
No
Bulbs Included
No
Ceiling Cutout Length(cm)
24.765
Ceiling Cutout Length(in)
9.75
Ceiling Cutout Length(mm)
247.65
Ceiling Cutout Width(cm)
26.67
Ceiling Cutout Width(in)
10.5
Ceiling Cutout Width(mm)
266.7
Collection Name
InVent
Color Temperature (Kelvins)
0 Kelvins
Decorative
No
Duct Size
4-in
Duct-Free
No
ENERGY STAR Certified
No
Fan Box Height(cm)
14.605
Fan Box Height(in)
5.75
Fan Box Height(mm)
146.05
Fan Box Length(cm)
23.495
Fan Box Length(in)
9.25
Fan Box Length(mm)
234.95
Fan Box Width(cm)
25.4
Fan Box Width(in)
10
Fan Box Width(mm)
254.0
Fan Heater Wattage
N/A
Fan Speeds
1
File/Certification Number
0
Fixture Color Family
White
Fixture Finish
Polished
Grille Length(mm)
317.5
Glass Type
N/A
Grille Length(cm)
31.75
Grille Length(in)
12.5
Heat Technology
N/A
Humidity Sensor
No
HVI Certified
Yes
Integrated Heater
No
Light Options
None
Lighted
No
Manufacturer Color/Finish
White polymeric
Night Light Maximum Bulb Wattage
0
Motion Sensor
No
Mount Location
Ceiling
Night Light
No
Night Light Bulb Type
N/A
Number of Lights
0
Recommended Room Size(ft2)
90
Recommended Room Size(m2)
8.361
Room Light Bulb Type
N/A
Room Light Maximum Bulb Wattage
0
Safety Listing
cUL safety listing
Smart Compatible
No
Smartphone Enabled
No
Sound Level Rating (Sones)
2.0 Sones
Speaker Included
No
Suggested Room Size
80-99 sq ft
Title 24 Compliant
No
Type
Bathroom fan
Warranty
1-year
Width of Grille(cm)
29.845
Width of Grille(in)
11.75
Width of Grille(mm)
298.45
Attic Access Needed
No
Fan Sound Level (Sones)
Moderate (1.5 to 3.0 sones)
Grille Shape
Square
No Cut Installation
No
Roomside Installation
No
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 0ms
  • QUESTIONS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
Bathroom Fan - Invent Series - 90 CFM is rated 3.0 out of 5 by 3.
Rated 1 out of 5 by from NOISY Rated 2 on a scale of 6, 1 being quietest an 6 being loudest. 6 must be a fighter jet because this fan is louder than the builder model from the 80's that it replaced. sounds like a piece of junk
Date published: 2022-01-08
Rated 3 out of 5 by from Instructions pas adéquates Vraiment bruyante et les instructions étaient incomplètes, mais pour le prix que j’ai payé on va faire avec
Date published: 2021-04-23
Rated 5 out of 5 by from Great Fan, Quiet, and looks good Would Purchase again! Used in rental properties, great value
Date published: 2021-02-19
