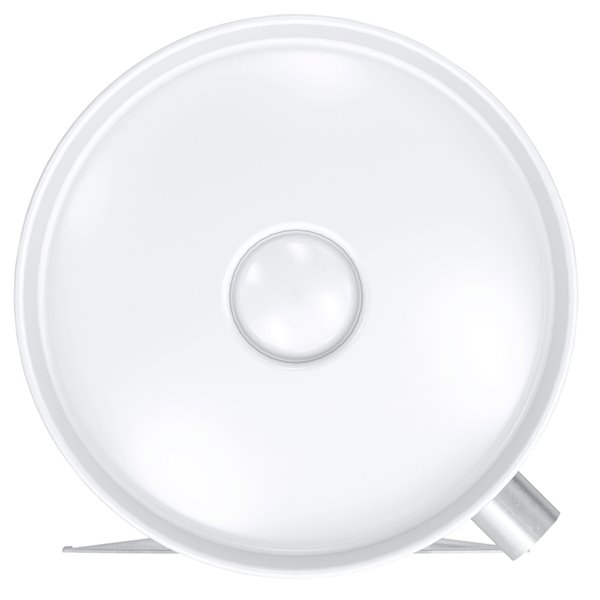

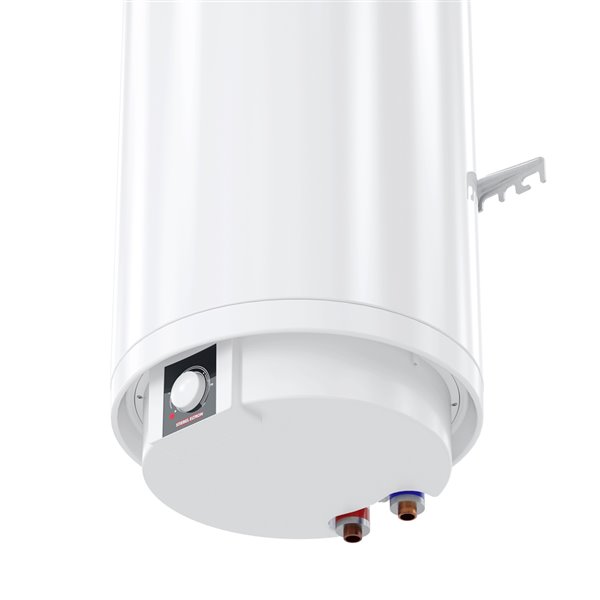

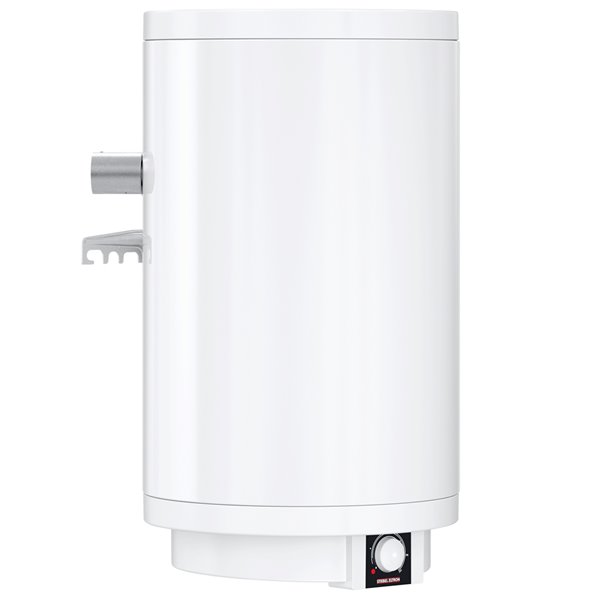

Stiebel Eltron PSH 20 Wall-Mounted Tank Water Heaters 21 gal Electric
Article #330756597
Model #235968
This item is not currently available for immediate purchase, but can be ordered by visiting the selected store.
Add to Cart
Warranty
6-year limited
Add to Cart
Description
The PSH 20 Plus storage water heater is a new style of compact water heater that can be installed wherever hot water is needed. The unique wall-mounted design frees up valuable space. The combination of a smaller capacity tank with a powerful 3 kW heating element results in a quick recovery time. The special porcelain enamel coating and the highly effective sacrificial magnesium anode ensure a long service life. The PSH 20 Plus water heater is easily connected using copper, PVC, or PEX tubing. An optional wall-mounted drain pan with complementary design to match the PSH Plus is available. The optional drain pan easily mounts on the wall below the heater.
- Wall mounting saves floor space
- Adjustable temperature control for safety and comfort

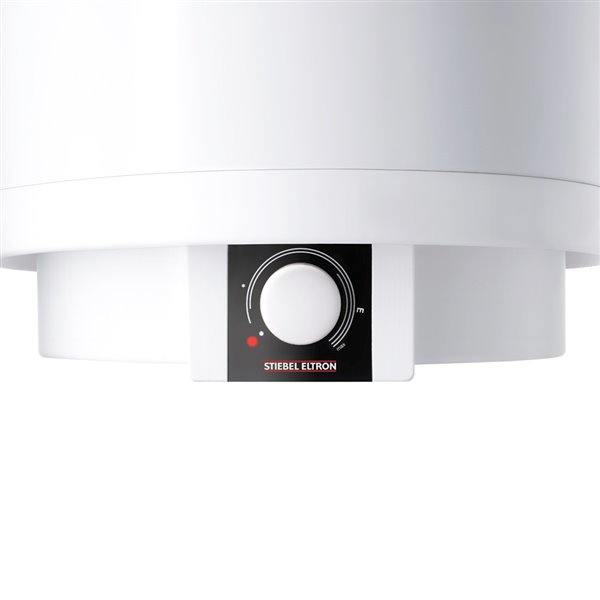

- Temperature control located in front for easy access
- Polyurethane insulation is 48 mm thick for low 24-hour stand-by losses
Product specifications
Bluetooth Compatibility
No
Commercial/Residential
Commercial/Residential
Hybrid Heat Pump Technology
No
ENERGY STAR Certified
No
Element Type
Copper
Installation Location
Indoor
Warranty
6-year limited
Water Connection Location
Bottom
Water Connection Size
3/4-in
Foam Insulation
Yes
Rated Storage Capacity
Not applicable
Mobile Home Compatible
No
Point of Use
No
Series Name
PSH
Temperature and Pressure Relief Valve
Yes
Uniform Energy Factor
0.93
Water Heater Style
Wall-mounted compact
Wi-Fi Compatibility
No
Base Warranty Parts
24
Family Size
1
Electronics Warranty Parts
24
Gph Recovery At 90 Degrees F (gallons)
13.8
Element Wattage
3000
Insulation Thickness(in)
1.87
Height(in)
36.25
Number of Elements
1
Nominal Capacity (us Gallons)
20
Tank Warranty Parts (months)
2
Weight (lb)
62.2
Voltage (volts)
240
Country of Origin
Slovakia (Slovak Republic)
