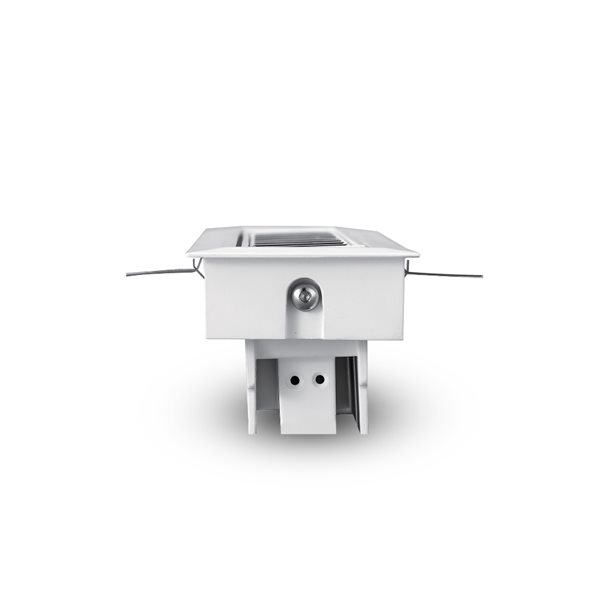

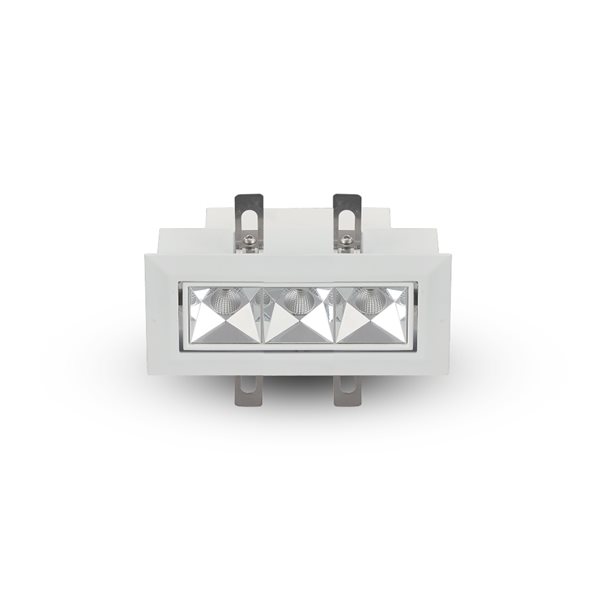

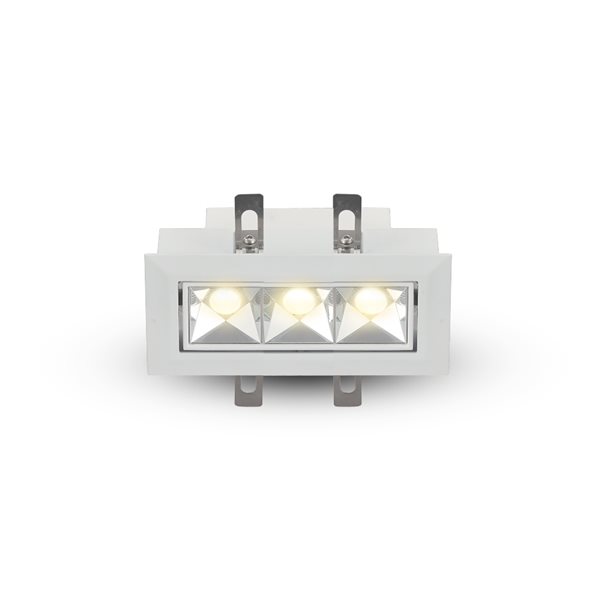

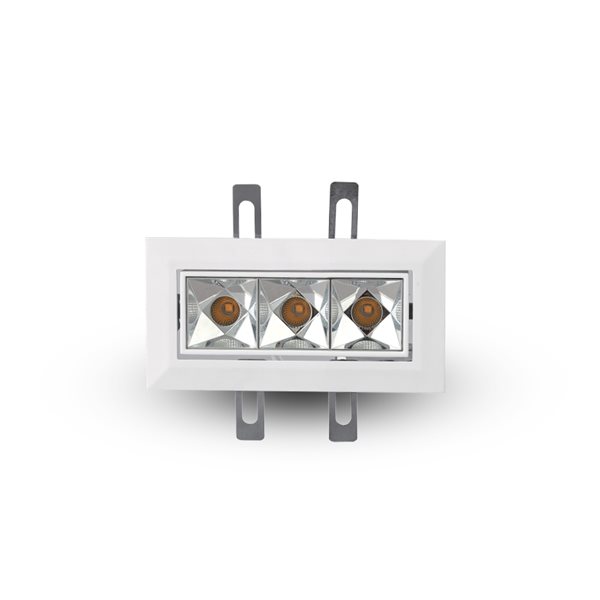

VONN Lighting 3 Lights Integrated LED Adjustable Recessed Downlight w/Trim, Comm. Grade, White
Article #330867814
Model #VMDL000603C009WH
This item is not currently available for immediate purchase, but can be ordered by visiting the selected store.
Add to Cart
Add to Cart
Description
Integrated LED adjustable 3-spot fixture made of aluminum. Adjusts 15° to the left or right. Dimensions: 5-in L x 2.5-in W x 2.25-in H. Hole size: 4.75-in L x 2.25-in W. Electrical box dimensions: 8.46-in L x 1.77-in W x 1.57-in H. Beam angle: 34°.
- LED Adjustable trim downlight, RUBIK Series; Aluminum body structure available in White finish

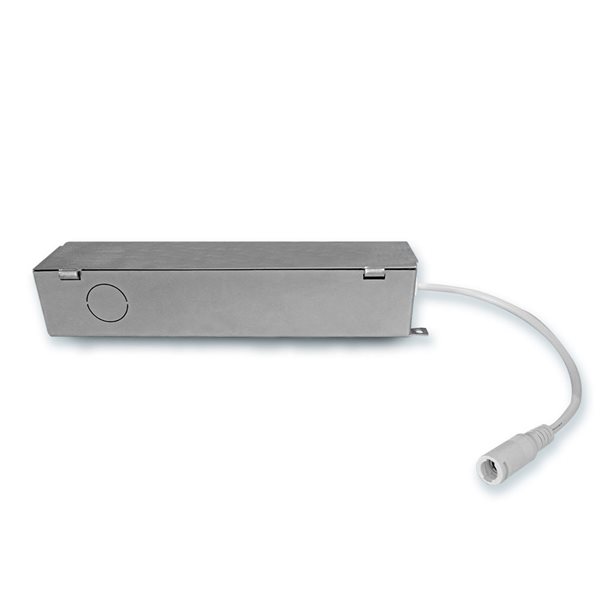

- Integrated LED 3-spot fixture, recessed installation with remote driver (included); IC Rated; Adjustable 15° to the left or right
- DIMENSIONS: 5"L x 2.5"W x 2.25"H; HOLE SIZE: 4.75"L x 2.25"W; ELECTRICAL BOX DIMENSIONS (for included remote driver): 8.46"L x 1.77"W x 1.57"H
- LENS BEAM ANGLE: offered in 4 beam angles 12°, 20° & 48°(special order required), 34°(stock beam angle); STOCK BEAM ANGLE: 34°; DIMMABLE: 0-10V
- CCT: 3000 Kelvin color temperature; BRIGHTNESS: 576.06 Lumens; WATTAGE: 8.6W
- VOLTAGE: 100-277V; CRI 90: is the highest measurement of light about the accuracy of color appearance
- IP Rate: IP20 (dry rated)
- ETL, cETL, Title 20 Compliant, Title 24 Compliant, Prop 65 Compliant, Energy Star Compliant
- 3 Year Limited Warranty
Product specifications
Lumens
576.06
Wattage
8.6
Wattage Equivalent
8.6
Color Temperature
3000
Rated Life
50000
Minimum Depth Required(in)
3.12
Fits Housing Diameter
N/A
Damp Rated
No
Collection Name
Rubik
Dimmable
Yes
Manufacturer Color/Finish
White
For Use in Living Rooms
Yes
Adjustable Head
Yes
Mount Type
Spring clip
Retrofit
No
Bulb Base Type
LED
Bulb Installation Type
Integrated LED
ENERGY STAR Certified
Yes
Trim Kit Included
No
Title 24 Compliant
Yes
For Use in Bathrooms
No
For Use in Foyers
Yes
For Use in Kitchen/Dining Rooms
Yes
Power Source
Hardwired
Canless
Yes
Color/Finish Family
White
Depth-Adjustable Socket
No
Encircled "E" Required on Product or Pkg
No
Junction Box Compatible
No
Light Color Emitted
Soft White
For Use in Bedrooms
Yes
Shape
Square
