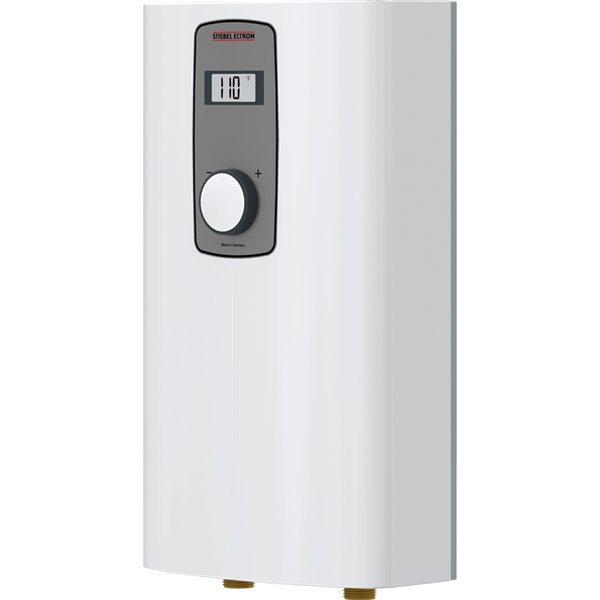

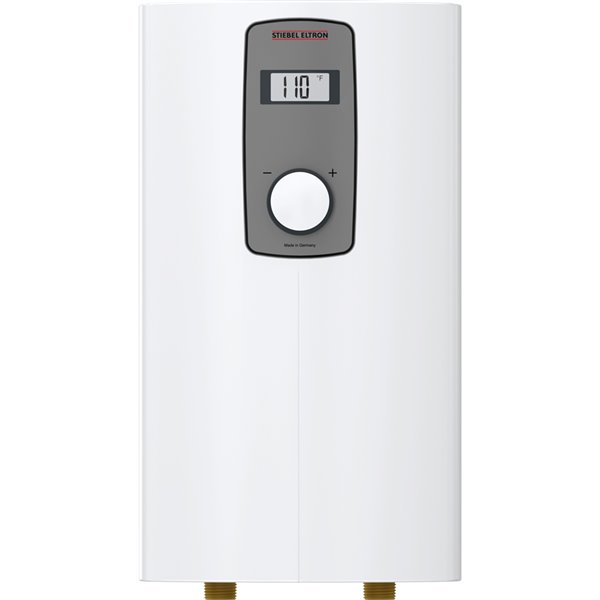

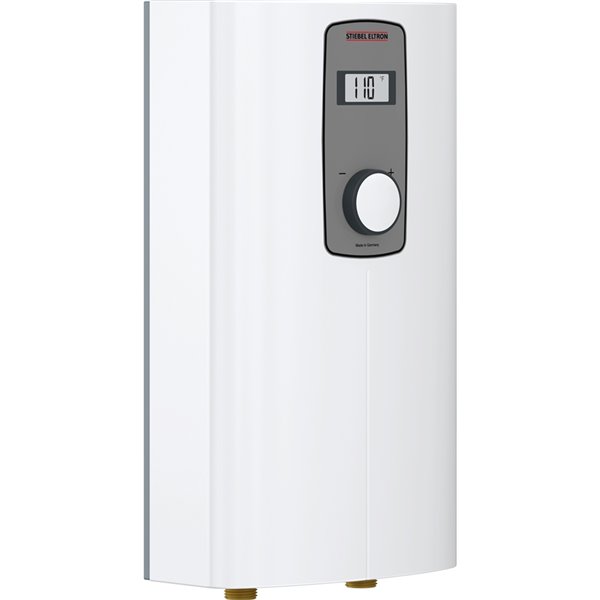

Stiebel Eltron DHX 3.5-1 Trend 3.5-kW 120V Point of Use Electric Tankless Water Heater - Under Sink
Article #330784839
Model #200067
This item is not currently available for immediate purchase, but can be ordered by visiting the selected store.
Add to Cart
Warranty
7-year limited
Add to Cart
Description
The robust and trouble-free Direct Coil heating system of the DHX series, Stiebel Eltron’s most advanced technology, is self-cleaning for superior limescale resistance. Ideal for residential and commercial point-of-use sink applications, DHX models heat water endlessly on demand at 99% efficiency. They have no standby energy losses because they do not store hot water like tank water heaters. No venting is required and the compact European design can be installed with the unit visible. The desired output temperature is easily set using the dial and display on the cover. The DHX series excels at supplying water at a constant temperature, but the amount of hot water and its temperature depends on the incoming cold-water temperature and the size of the DHX model. The correct model size must be chosen by using the DHX Sizing Guide.
- Direct Coil heating system’s proven and trouble-free technology self-cleans for increased limescale resistance
- Ideal for any residential and commercial applications including: bathrooms, cabins and cottages, office buildings, stores, malls, warehouses, restaurants, and gas stations
- Heats water on demand for endless hot water as long as it is needed
- Electronic self-modulation technology ensures the least amount of electricity needed is used
- Sleek European design is considerably smaller than a tank, requires no venting, and allows space-saving installation close to the point-of-use
- Direct Coil heating system provides fast heat-up and response
- Model size must be carefully matched to the application for proper operation
- Low 0.26 GPM activation rate
- Made in Germany with final assembly in USA
Product specifications
Width(in)
8
Voltage (volts)
120
Wire Size (gauge)
10
Weight (lb)
5.5
Major Appliances Supplied Simultaneously
1
Power Output (kilowatts)
3.5
Household Amperage Required (amps)
29
Height(in)
14.13
Maximum Gallons per Minute
0.26
Electronics Warranty Parts
36
Depth(in)
4.94
Base Warranty Parts
36
Amps Required For Unit Only (amps)
29.2
Wi-Fi Compatibility
No
Uniform Energy Factor
0.99
Series Name
DHX
Point of Use
Yes
Mobile Home Compatible
Yes
Type
Ground temp above or below 60°F
Warranty
7-year limited
Installation Location
Indoor
Hybrid Heat Pump Technology
No
Commercial/Residential
Commercial/Residential
Bluetooth Compatibility
No
