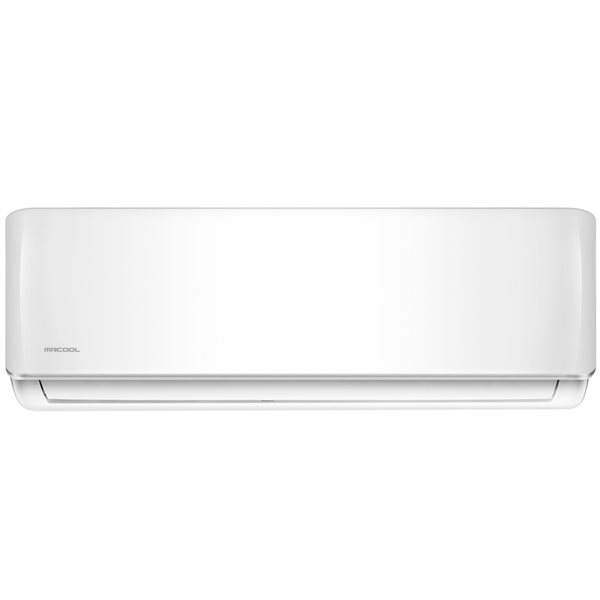

MRCOOL DIY 4th Gen 24,000 BTU 20.5 SEER Ductless Mini-Split AC/Heat Pump Energy Star Certified
Article #331064607
Model #DIY-24-HP-WM-230C25
This item is not currently available for immediate purchase, but can be ordered by visiting the selected store.
Add to Cart
Warranty
5-year limited
Add to Cart
Description
The MRCOOL 4th generation heat pump is an all in one system that seamlessly combines efficiency, durability, and simplicity. This system can offer a 20.5 SEER efficiency rating that has allowed it to achieve an Energy Star certification and can heat and cool an area up to 1,000 sq. ft. It also features durable construction and a corrosion-resistant gold fin condenser. All of this is contained within a do-it-yourself system that can be installed by a homeowner in a few hours using simple tools. This simplicity is achieved with the use of the patented MRCOOL pre-charged quick-connect line set included with the system.
- Energy Star certified 20.5 SEER, 10.5 HSPF
- Pre-charged R-410A 25ft quick connect line doesn't require special tools, equipment, or training
- Designed to efficiently heat and cool a single 1000 Sq. ft. room
- Compatible with amazon Alexa and Google assistant
- Variable-speed DC inverter compressor technology cuts operating costs
- Low ambient cooling: cooling down to 5 °F this feature makes the Mrcool DIY the ideal system for computer server rooms, greenhouses, and any other application that requires cooling all year
- Gold fin condenser: corrosion resistant - live on the coast don’t worry, our condenser is built to resist long term corrosion
- 7-Year compressor warranty and 5-year parts warranty
- It is equipped with up to six operating modes, which include auto, heat, cool, fan-only, dry (dehumidification), and sleep
Additional Content & Guides
Product specifications
Amperage
35
Air Handler Depth (in)
8.9
Air Handler Height (in)
13.19
Air Handler Width (in)
42.52
Base Warranty Parts
60
Compressor Depth (in)
16.14
Compressor Height (in)
31.89
Compressor Width (in)
37.24
Cord Length(ft)
25
Depth(in)
16.14
Decibel Rating (Highest Setting)
48.5
Decibel Rating (Lowest Setting)
33
Cooling Btu Rating (btu)
23000
Maximum Coverage Area (sq. Feet)
1000
Height(in)
31.89
Number of Speeds
4
Weight (lb)
125.22
Voltage (volts)
115
Width(in)
37.24
24 Hour Timer
Yes
App Compatibility
App required
Auto Cool
Yes
Bluetooth Compatibility
No
Color/Finish Family
White
Control Type
LED
Filter Type
Nylon
Fan Only Option
Yes
ENERGY STAR Certified
Yes
Oscillation
Yes
Warranty
5-year limited
Manufacturer Color/Finish
White
Low Voltage Compensation
No
Heater Included
Yes
Hub Required
No
Multi-Directional Air Control
Yes
Mounting Location
Wall
Plug Type
N/A
Overload Protection
Yes
Sleep Mode
Yes
Series Name
DIY 4th Gen Energy Star Series
Remote Control Included
Yes
Quiet Mode
Yes
Voice Controlled
Yes
Refrigerant Type
R-410A
Thermostat
Yes
Sub-Brand
n/a
Wi-Fi Compatibility
Yes
Works with Amazon Alexa
Yes
Works with Android
Yes
Works with Apple HomeKit
No
Works with iOS
Yes
Works with SmartThings
No
Zone Capacity
Single
Energy Efficiency Ratio (E.E.R.)
12.5
Safety Listing
UL safety listing
MRCOOL DIY 4th Gen 24,000 BTU 20.5 SEER Ductless Mini-Split AC/Heat Pump Energy Star Certified is rated
out of
5 by
142.
Rated 5 out of
5
by
YeseniaN1987 from
Great
Very good product, I was surprised how good it worked in my small room.
Date published: 2019-12-14
Rated 5 out of
5
by
Quiny from
Easy install
Just installed, all seems good. Very good directions
Date published: 2019-11-13
Rated 5 out of
5
by
Nightcloud from
Couldn’t Be Happier
This is the best investment I could have made living here in the south. I am very pleased with the features this unit was created with. I use the Sleep feature every night to save on the electric bill and speaking of electric bill mine has dropped substantially since putting this unit in, very efficient. As long as you think through what you are about to do it installs beautifully. The Remote has every choice for your comfort that you could imagine. I am very pleased.
Date published: 2019-09-19
Rated 5 out of
5
by
Tambabs from
Great install
DIY is a great kit. Sealed and easy to install. Want two more for my home.
Date published: 2019-09-14
Rated 5 out of
5
by
Jack56 from
love it!
Just purchased and installed. super easy. No leaks after installing oer i structions.
Date published: 2019-09-02
Rated 5 out of
5
by
Chrisidcw from
Easy install
Bought this during the hottest month for my cottage, installed in a couple hours and ready to go with minimal issues, adding another to a rental unit we own
Date published: 2019-08-31
Rated 5 out of
5
by
apish from
Installed all by ourselves. Saved thousands
We purchased this unit for our granny flat. 700 sq ft. Works great! Very happy with install ease, product works great for cool. Haven't needed the heater yet.
Date published: 2019-08-18
Rated 5 out of
5
by
JimBeaux from
Easy install
installation was straight forward and every thing is working fine
Date published: 2019-08-09
