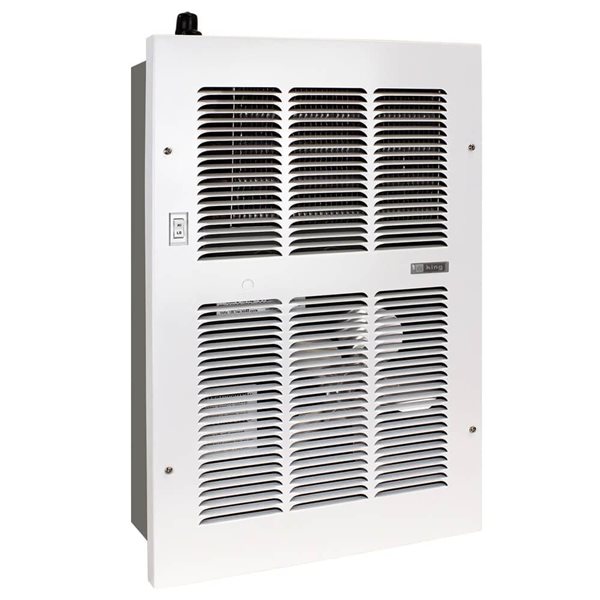

King Electric Medium White Hydronic Wall Heater 11700/15500 BTU

Article #332069094 Model #HME1012 11/15-FS-GW
This item is not currently available for immediate purchase, but can be ordered by visiting the selected store.
Hassle-Free Returns Return or exchange within 90 days. Exceptions apply. See details.
Warranty 2-year limited

Description

King’s HM / HME Series medium hydronic heater uses the energy from a building’s existing hot water source to offer efficient, whisper quiet operation and the ability to reduce utility bills with individual room control. By installing hydronic heaters in every room, you can easily heat only the areas in use and conserve energy. Designed to fit neatly between standard wall studs, this in-wall heater provides out of the way positioning ideal for use in bedrooms, bathrooms, and laundry rooms. For use in both residential and commercial applications. The unit provides a heat output of 3300 to 18,700 BTU.
  • In-wall, fan-driven, zone-controlled heat
  • Heat only the rooms that need it, borrowing energy from what's already there: the hot water heater
  • Compatible with typical hot potable water sources
  • Tangential blowers for whisper quiet operation
  • Fast coil heating for heat transfer
  • 1/2-in trade size copper tubes
  • Flow-through design
  • 4 or 8 aluminum fins per inch
  • Permanently lubricated motor

Product specifications

Energy Saving Setting
No
Grille Depth(in)
0.75
Grille Height(in)
23.25
Grille Length(in)
15.5
Grille Material
Steel
Minimum Mounting Height(in)
4
Number of Heat Settings
1
Overall Height(in)
23.25
Overall Length(in)
15.5
Overall Width(in)
4.75
Rough Opening Depth(in)
4.75
Rough Opening Height(in)
21.75
Rough Opening Length(in)
14.25
Thermostat Type
None
Use Location
Indoor
Voltage Rating
120
File/Certification Number
3131491PRT-001
Automatic Shut-Off
No
Color/Finish Family
White
Type
Forced air
Package Contents
Heater
Safety Listing
cETL safety listing
Series Name
HME
Manufacturer Color/Finish
White
Country of Origin
United States
Maximum BTUs
15500
Amperage
0.42
Timer
No
Warranty
2-year limited
Heating Area(ft2)
450
Maximum Wattage(Watts)
4542
Weight(lb)
24
