Description

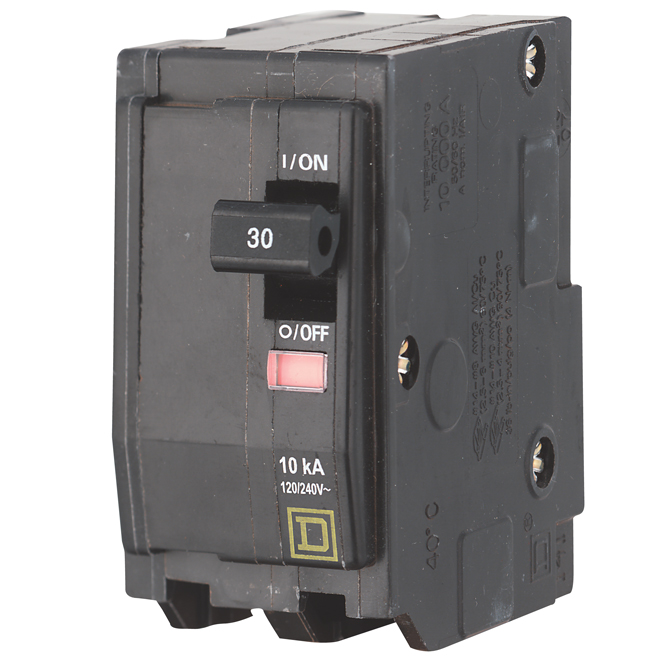

The exclusive QO Visi-Trip instantly identifies a tripped circuit breaker with a red indicator window. The Visi-Trip reduces the number of call backs, as well as the chance that other circuits will be turned off accidentally. This breaker will work only in Square D branded residential panels. Typical applications for a double pole 30 Amp breaker include short circuit and overload protection for a hot water heater or clothes dryer. Provides overload and short circuit protection (240Vac). 10,000 Amperes Interrupting Rating (AIR). HACR type for use with air conditioning, heating and refrigeration equipment having motor group combinations and marked for use with HACR type circuit breakers. Slot/Robertson screws for wire termination. Option for padlocking breaker in oON” or oOFF” position.
- Provides overload and short circuit protection (120/240 Vac)
- Exclusive Visi-Trip red indicator
- 10,000 Amperes Interrupting Rating (AIR)
- HACR type for use with air conditioning, heating and refrigeration equipment having motor group combinations and marked for use with HACR type circuit breakers
- Accepts aluminum or copper conductors
- Can padlock breaker in on or off position
- Slot/Robertson screws for wire termination
- Limited lifetime warranty
Product specifications
Width Measurement
1-1/2-in
Warranty
1-year limited
Type
Standard trip
Circuit Breaker Voltage
240
File/Certification Number
E84967
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
2
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
30-amp
Safety Listing
UL safety listing
Series Name
QO
Surge Protection
No
You may also like
EATON
Eaton Electrical Outlets - 15-Amp - 125-Volt - Tamper Resistant - Duplex Receptacle - White
Format 15A 125V
Details
Article #04805534
SIEMENS
2-Pole 120/240 V AC GFCI Circuit Breaker - 20 A Rated
Format 20AM 2P 120-240V
Details
Article #88665013
SIEMENS
2-Pole 120/240 V AC GFCI Circuit Breaker - 30 A Rated
Format 30AM 2P 120-240V
Details
Article #88665014
30-A 2P QO Circuit Breaker is rated
out of
5 by
43.
Rated 4 out of
5
by
Toadfish from
Attracted fire ants
Worked well for about 15 years, but out
in the woods, fire ants love to get in the
main breakers ???? Don't know why. but
I have to dope around the breaker box.
Guess I should have remembered this year.
Noticed the electric furnace wasn't heating
properly. checked the circuits, had a voltage
drop on one pole. One side read 125.16 V the
other was only 90 V. Put in the new breaker,
low an' behold 125 V on both poles. Glad I
had a digital multimeter and knew how to use
it. Saved me an overpriced HVAC house call,
and probably an overpriced breaker, yeah that
was the first time it snowed and iced over a
while back.
Date published: 2021-02-21
Rated 5 out of
5
by
Bert from
Square D
Quality breaker, used for tie in of portable generator to the main panel.
Date published: 2017-09-23
Rated 5 out of
5
by
JMicMann from
Excellent Circuit Breaker - The BEST !!!
Square-D Circuit Breaker are easy to replace and install. I have been using Square-D for over forty years and they are my preferred brand.
Date published: 2013-06-27
Rated 5 out of
5
by
Magimac from
It was simple to install, fits and works perfect.
The employees were very helpful in finding the correct breaker for me.
Date published: 2013-12-05
Rated 4 out of
5
by
Ray from
Just in time for Thanksgiving
[This review was collected as part of a promotion.] Our oven went out several months ago. Actually, we built our home 20 years ago, every appliance went out almost at the same time, Unbelievable. We had to buy a new oven and also have a new cabinet made for it to fit in. Got it all done just in time for Thanksgiving. I mean the day before Thanksgiving. Thank you for having all of the supplies we needed.
Date published: 2019-12-14
Rated 5 out of
5
by
Dan from
[This review was collected as part of a promotion.] I am a retired electrical contractor and my choice has always been the Square D Qo style circuit breakers
exclent product.
Date published: 2019-10-22
Rated 5 out of
5
by
Jess from
Easy
[This review was collected as part of a promotion.] Snapped right in to the Square D 2-Circuit 2-Space 30-Amp Main Lug Load Center. Works great!
Date published: 2018-08-12
Rated 5 out of
5
by
Jb from
Works as intended
[This review was collected as part of a promotion.] Bought this to replace an old breaker that went out. Easy install, works just fine
Date published: 2019-08-15
