Product selection from
SIMPSON STRONG-TIE
Simpson Strong-Tie SUL Z-Max Face Mount Joist Hanger - Single - 16-Gauge - Galvanized Steel - 2-in W x 6-in L
Article #35945140
Model #SUL26Z
Format 2x6"x45DGxGA16
This item is not currently available for immediate purchase, but can be ordered by visiting the selected store.
Hassle-Free Returns
90 days to return or exchange in original condition and packaging.
Read Return Policy
Warranty
Limited lifetime
Description

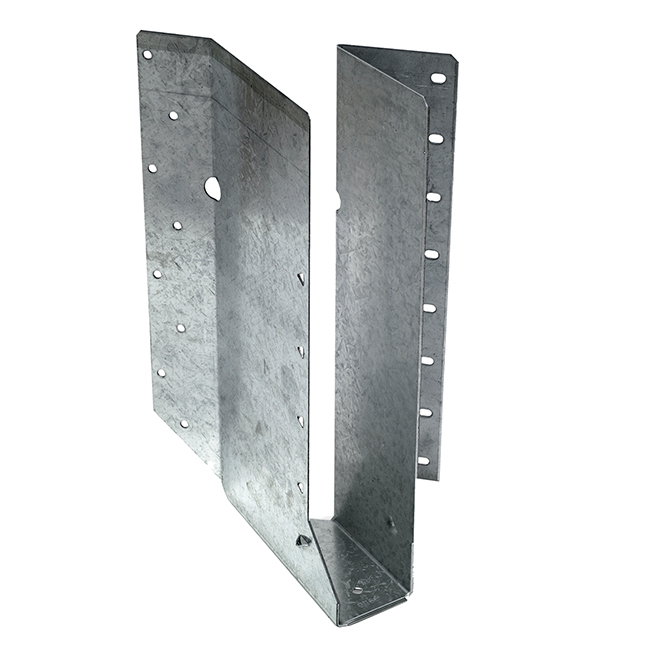

Use the 45° left-skewed Simpson ZMAX joist hanger to affix single and double I-joists with relative ease. Its actual measurements are 4 21/32 in W x 2 9/16 in H. With its ZMAX overlay, this 16-gauge galvanized steel unit combats corrosion. Parallel installation of the nails is easy with the round holes on the acute section of this 2 in x 6 in joist hanger.
- SUL = skewed left
- Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
- These hangers cannot be modified but will accommodate a 40° to 50° skewed joist
- Available with the acute flange turned in to accommodate end-of-wall installation for solid sawn sizes only (SURC or SULC)
- Nominal joist size: 2x6 or 2x8
- Made from 16-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Install with 16d common nails in the header and 10d x 1-1/2-in nails in the joist
Product specifications
Sloped
No
Skewed
Yes
ACQ Approved
Yes
Actual Length(cm)
12.77112
Actual Length(in)
5.028
Actual Length(mm)
127.7112
Actual Width(cm)
12.73556
Actual Width(in)
5.014
Actual Width(mm)
127.3556
Adjustable
No
Common Measurement (W x L)
2-in x 6-in
Depth(cm)
6.30936
Depth(in)
2.484
Depth(mm)
63.0936
Fasteners Included
No
Finish
ZMAX
Gauge
16
Manufacturer Color/Finish
ZMAX Galvanized, G185
Material
Steel
Materials Connected
Wood to wood
Maximum Size
2x8
Members
Single
Minimum Size
2x6
Nails Required
Assortment
Package Quantity
1
Type
Angled joist hanger
Warranty
Limited lifetime
Multi-pack
No
