Reln 6-in x 6-in Stainless Steel Shower Tile Drain
Article #06275126
Model #FD0602TLSS
Format 6"x6"
This item is not currently available for immediate purchase, but can be ordered by visiting the selected store.
Hassle-Free Returns
90 days to return or exchange in original condition and packaging.
Read Return Policy
Warranty
5-year limited
Description

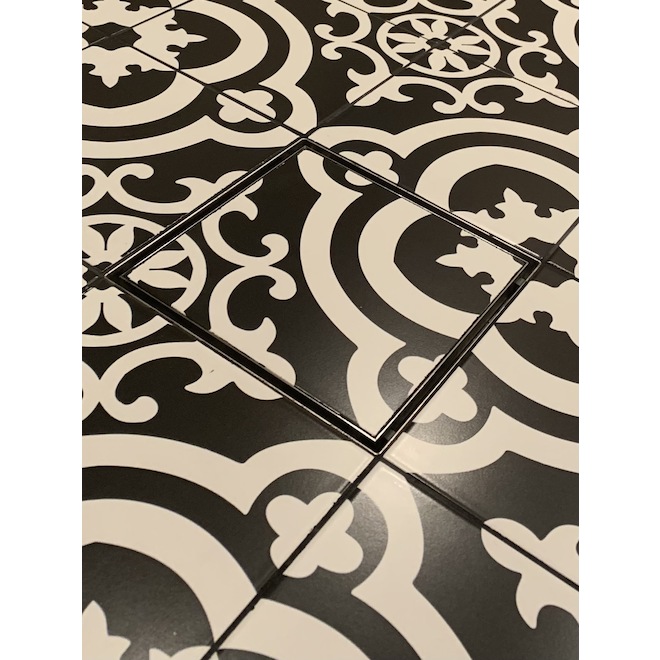

Modernize the look of your bathroom with this Reln tile shower drain. It's made of stainless steel and measures 6 in x 6 in. It includes a hair and debris filter and is easy to install.

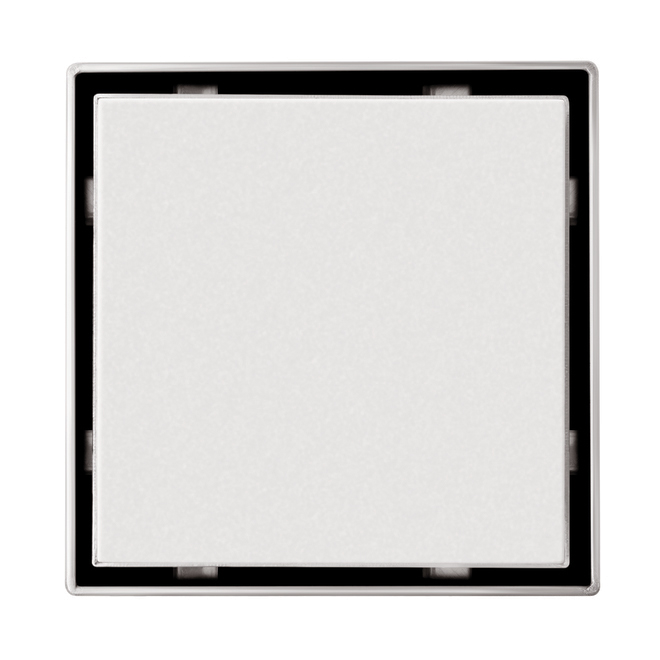

- Square grate eliminates difficult tile cuts around the drain

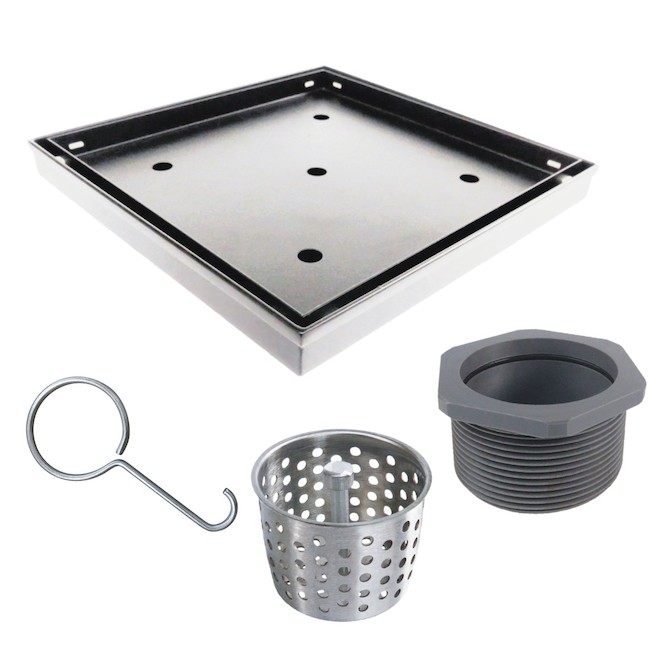

- Removable grate and basket strainer included
- Drain size 2 inch
- Suggested uses shower drains, patio/atrium drains, and other wetted area floor drains
- Low-profile drain

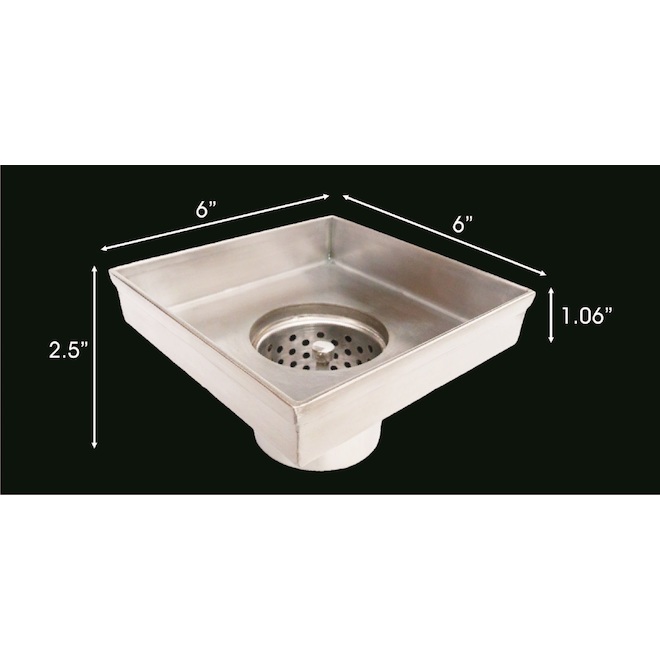

- Dimensions: L 6 in x W 6 in
- Drain base part FDB00600 sold separately
Product specifications
Code Approvals
cUPC
Color/Finish Family
Stainless steel
Common Use
Shower stall and large bath drainage
File/Certification Number
12
Fits Pipe Size
2-in
For Use with Mobile Homes
Yes
For Use with RVs
Yes
Grate Style
Tile insert
Inlet Thread Type
Threadless
Length(cm)
15.24
Length(in)
6
Length(mm)
152.4
Manufacturer Color/Finish
Stainless steel
Material
Stainless steel
Maximum Working Temperature (Celsius)
82.22222222
Maximum Working Temperature (Fahrenheit)
180
Minimum Working Temperature (Celsius)
-17.77777778
Minimum Working Temperature (Fahrenheit)
0
Outlet Thread Type
Male
Pipe Diameter
2-in
Safety Listing
CSA safety listing
Series Name
RELN shower drains
Shape
Square
Strainer
Yes
Strainer Material
Stainless steel
Test Cap
No
Type
Shower drain
Warranty
5-year limited
Width(cm)
15.24
Width(in)
6
Width(mm)
152.4
