Product selection from
FEDERAL PIONEER

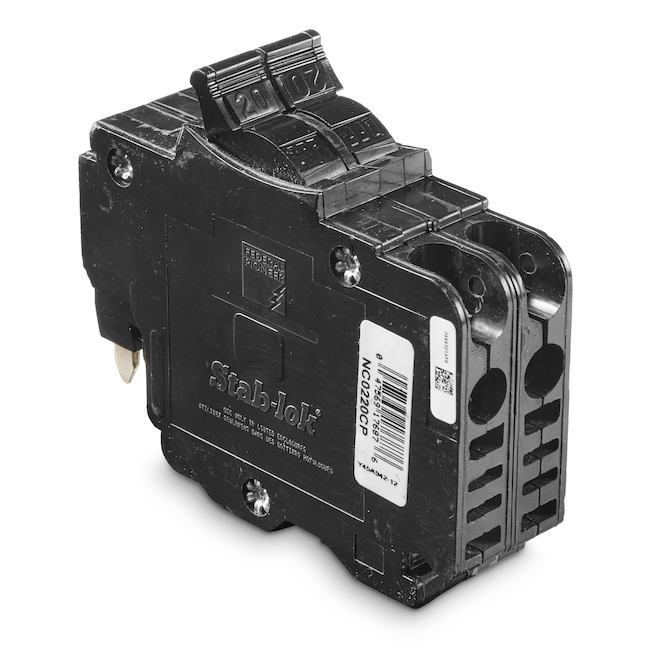

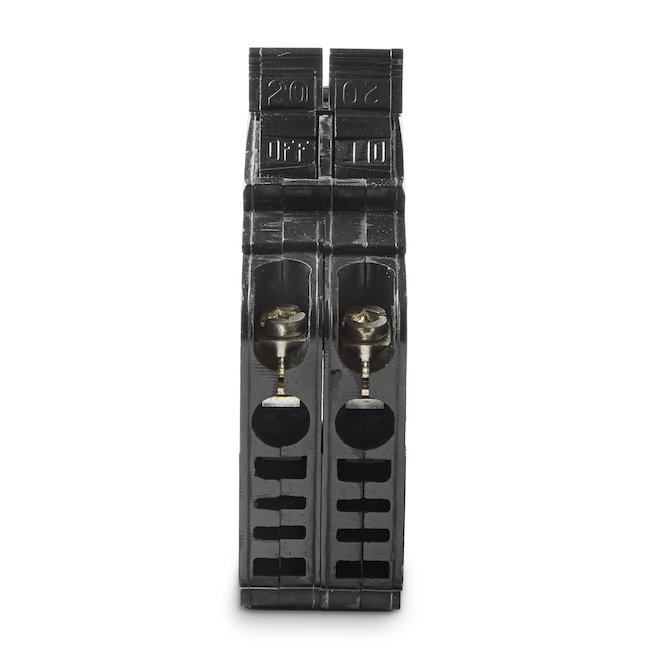

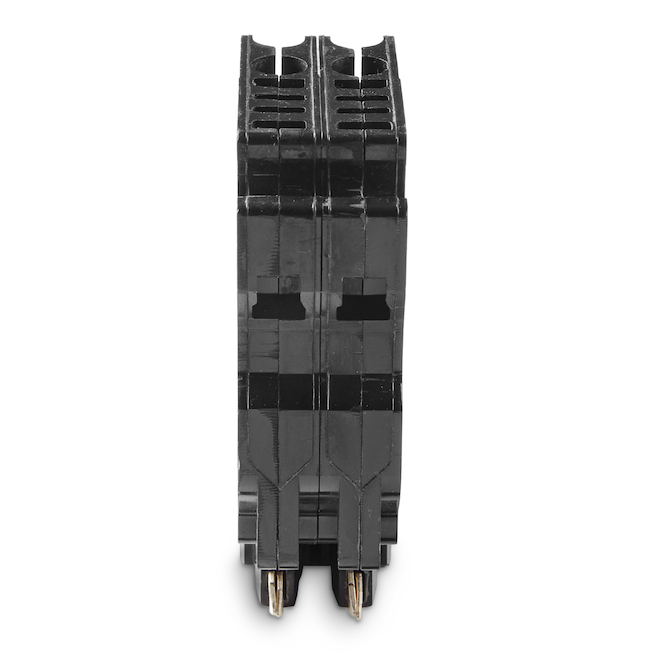

Federal Pioneer Stab-Lok 20-A x 120/240 Volts CSA Approved Bipolar (NC) Circuit Breaker
Article #1614005
Model #NC0220CP
Format 20AX120/240VX2POLES
Description
Stab-lok breakers are fully interchangeable with all past breakers and deliver the same proven quality. The unique Stab-lok breaker design of only a 1/2 thick per pole, allows for the reduction of the size and weight of the loadcentre. This breaker will work only in Federal Pioneer Stab-lok branded residential panels. Typical applications for a double pole 20 Amp breaker include the electric heater (240V up to 3.75Kw) in a home and requiring a wire size of 12-2. Provides overload and short circuit protection (240Vac). 10,000 Amperes Interrupting Rating (AIR). Lug Range: #14 - #6. Provides Slot/Robertson screws.
- Provides overload and short circuit protection (120/240Vac)
- Colour coded handles: identification is quick and easy with these colour coded handles, representing different ampere ratings
- 10,000 A interrupting rating (AIR)
- Lug range: #14 - #6
- Thermal magnetic trip protection
- Provides slot/Robertson screws
Product specifications
Width Measurement
1-in
UL Safety Listing
No
Type
Standard trip
Surge Protection
No
Amps(Amps)
20
Circuit Breaker Size
1 inch
Circuit Breaker Type
Standard trip
Circuit Breaker Voltage
240
CSA Safety Listing
Yes
ETL Safety Listing
No
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
2
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
20-amp
Series
NC
Series Name
NC
