Product selection from
FEDERAL PIONEER

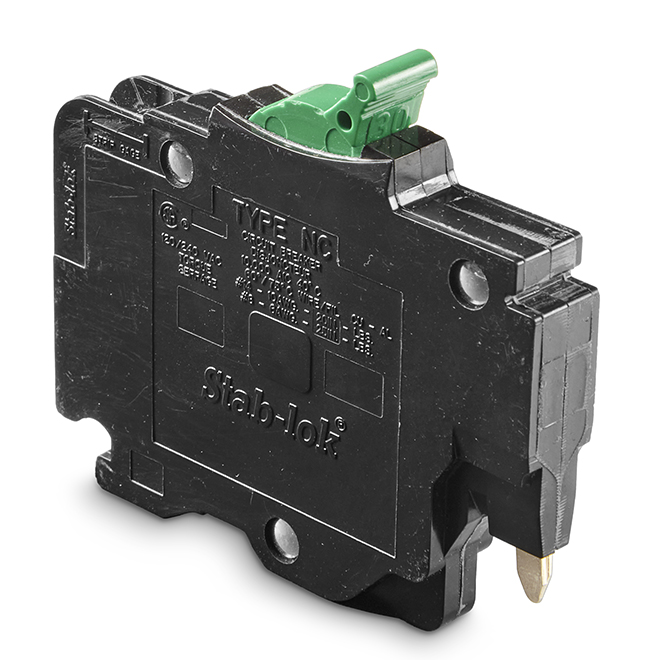

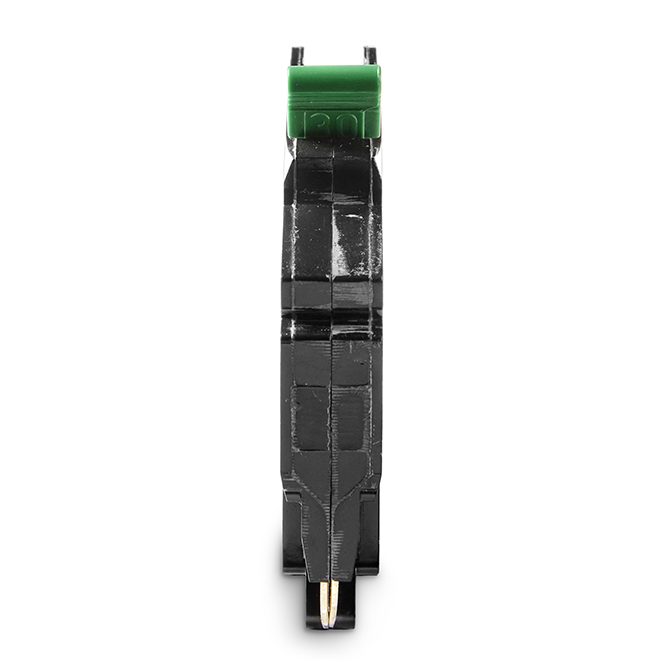

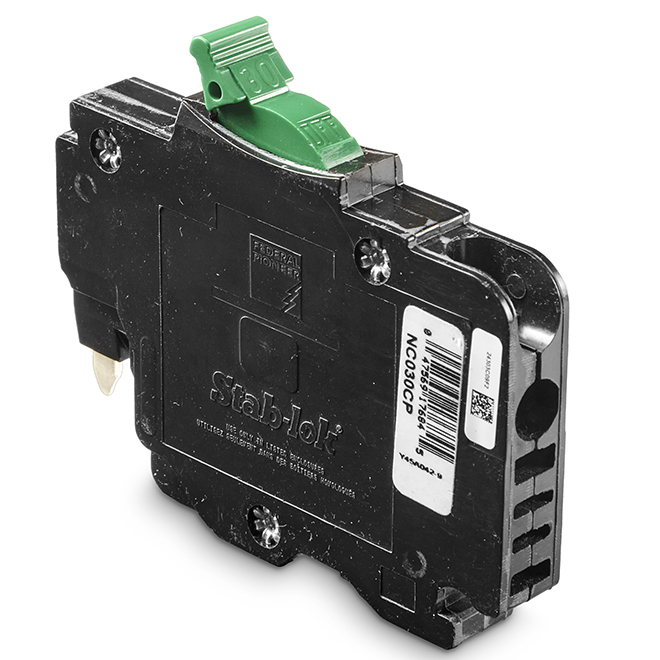

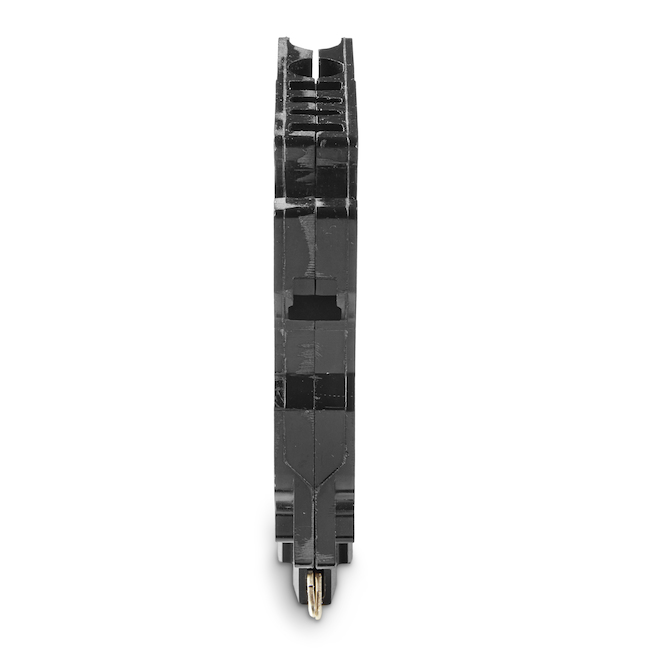

30-A 1P (NC) Circuit Breaker
Article #1614003
Model #NC030CP
Format 30AX120/240VX1POLE
Description
Stab-lok breakers are fully interchangeable with all past breakers and deliver the same proven quality. The unique Stab-lok breaker design of only a 1/2 thick per pole, allows for the reduction of the size and weight of the loadcentre. This breaker will work only in Federal Pioneer Stab-lok branded residential panels.
•Provides overload and short circuit protection (120Vac). Colour coded handles: identification is quick and easy with these colour coded handles, representing different ampere ratings. 10,000 Amperes Interrupting Rating (AIR). Lug Range: #14 - #6. Thermal magnetic trip protection. Provides Slot/Robertson screws.
•Provides overload and short circuit protection (120Vac). Colour coded handles: identification is quick and easy with these colour coded handles, representing different ampere ratings. 10,000 Amperes Interrupting Rating (AIR). Lug Range: #14 - #6. Thermal magnetic trip protection. Provides Slot/Robertson screws.
- Provides slot/Robertson screws
- Thermal magnetic trip protection
- Lug range: #14 - #6
- 10,000 A interrupting rating (AIR)
- Colour coded handles: identification is quick and easy with these colour coded handles, representing different ampere ratings
- Provides overload and short circuit protection (120Vac)
Product specifications
Width Measurement
1-1/2-in
UL Safety Listing
No
Type
Standard trip
Surge Protection
No
Series Name
NC
Series
NC
Amps(Amps)
30
Circuit Breaker Size
0.5 inch
Circuit Breaker Type
Standard trip
Circuit Breaker Voltage
120
CSA Safety Listing
Yes
ETL Safety Listing
No
Ground Fault Protection
No self test
Interrupting Amp Listing(Amps)
10000
Number of Poles
1
Phase
Single phase (120/240)
Plug-On Neutral
No
Power Capacity
30-amp
