Product selection from
BROAN

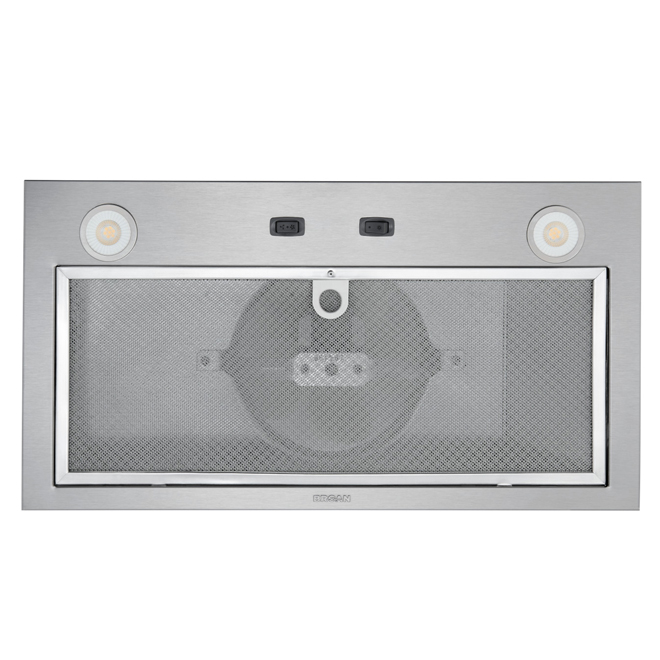

Broan Stainless Steel Range Hood - Ducted Vent - 21.375-in Actual Width - 3 Sones
Article #09095149
Model #PM300SS
Format 21" 300CFM
This item is not currently available for immediate purchase, but can be ordered by visiting the selected store.
Hassle-Free Returns
90 days to return or exchange in original condition and packaging.
Read Return Policy
Warranty
1-year
Description

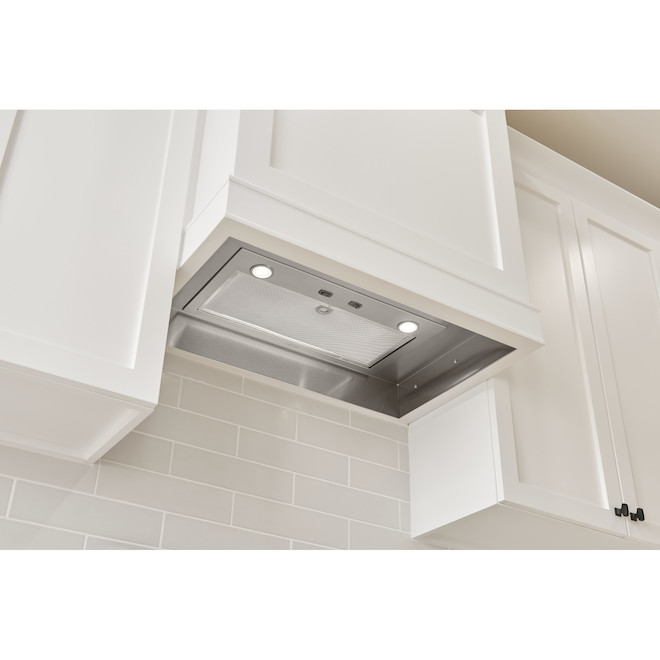

The PM300SS power pack insert is ideal for custom range hood applications, achieve a custom look and protect cabinetry with optional stainless steel liners. This two-speed power pack insert delivers up to 300 max blower CFM. Featuring a smooth, stainless steel surface that is easy to clean with quick-release dishwasher-safe filters. The bright LED lighting enhances your cooking experience.
- Efficient 300 max blower CFM operates at 3 sones at normal speed
- Bright 1-level, heat resistant LED modules enhance your cooking experience

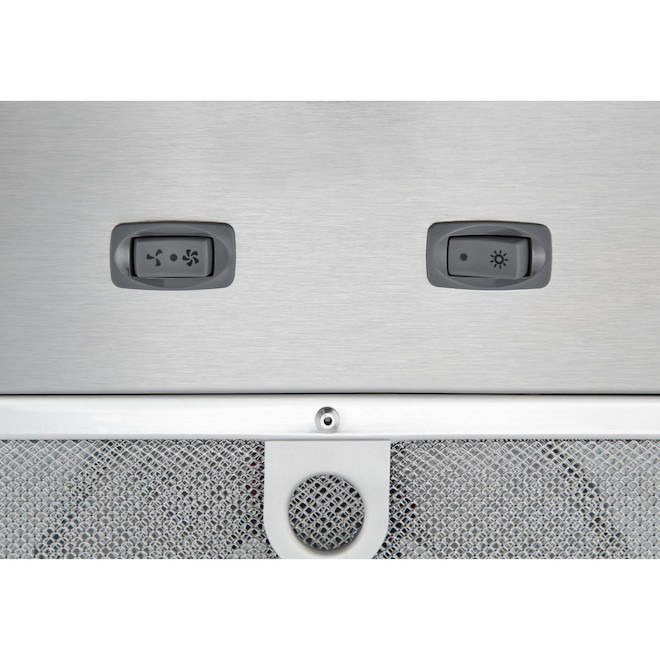

- 2-Speed rocker controls operate the fan speeds
- EZ1 clips make it easy for single-person installation
- Easy-to-clean, fully enclosed bottom with dishwasher-safe aluminum mesh filter
- ADA compliant, remote operation is possible using a standard UL approved wall switch, requires ADA adapter kit, sold separately
- Optional non-duct recirculation kit and filters available for indoor exhaust recirculation to suit your needs
- Works with optional stainless LB30SS and LB36SS liners
- Works with optional universal make-up air dampers

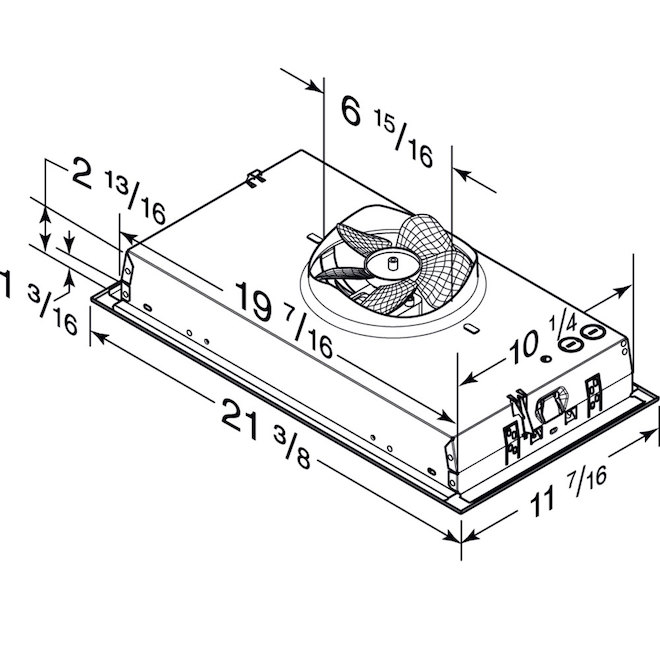

Product specifications
Actual Depth(cm)
29.05125
Actual Depth(in)
11.4375
Actual Depth(mm)
290.5125
Actual Height(cm)
7.62
Actual Height(in)
3.00
Actual Height(mm)
76.2
Actual Width(cm)
54.2925
Actual Width(in)
21.375
Actual Width(mm)
542.925
ADA Compliant
Yes (requires additional purchase)
Mounting Type
Insert
Number of Lights
2
Package Contents
Hood, hardware, installation guide
Remote Control Included
No
Removable Grease Filter
Yes
Safety Listing
cULus safety listing
Slide-Out
No
Smart Compatible
No
Sones Rating - Horizontal
3
Sones Rating - Vertical
3
Vent Type
Ducted
Voice Controlled
No
Voltage
120
Warranty
1-year
Wattage
0
Wi-Fi Compatibility
No
Works with Amazon Alexa
No
Works with Android
No
Works with Apple HomeKit
No
Works with iOS
No
Works with SmartThings
No
Works with Sonos
No
Works with the Google Assistant
No
Damper Type Included
7-in round
Exhaust Vent Location
Top
Fan Control Type
Rocker
Filter Replacement Model
S99100628-121
Light Bulb Replacement Type
LED
Number of Light Settings
1
Range Hood Shape
Rectangle
Vent Style
External
Range Hood Sound Level
Very quiet (43-50 dB)
App Compatibility
No
Appliance Color/Finish
Stainless steel
Base Warranty Labor(Months)
12
Base Warranty Parts(Months)
12
Bluetooth Compatibility
No
Charcoal Filter
No
Common Range Hood Size
21 inch
Compatible with LED
Yes
Cooktop Lights
Yes
Damper Included
Yes
Duct Type
7-in round
ENERGY STAR Certified
No
Exhaust Fan Controls
2-Speed rocker control
Fan Speeds
2
File/Certification Number
0
Filter Type
Micromesh
Fingerprint-Resistant
No
Hoods Warranty Labor(Months)
12
Hoods Warranty Parts(Months)
12
Hub Required
No
Light Bulb Type
LED module
Manufacturer Color/Finish
Stainless Steel
Maximum Air Volume(CFM)
300
Amperage
2.3
Can this be installed in the ceiling?
