Product selection from AQUA-DYNAMIC

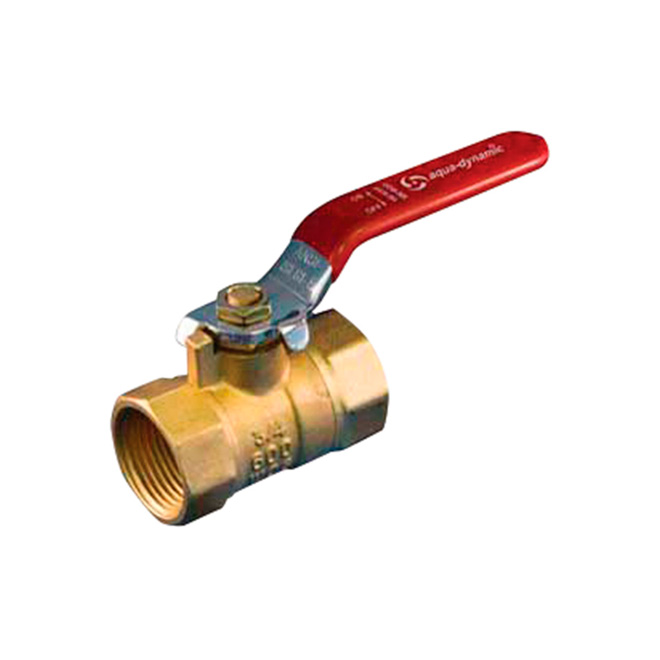

Ball Valve - Straight Handle - Forged Brass - 3/4" Threaded

Article #01735384 Model #1197-904 Format 3/4"
This item is not currently available for immediate purchase, but can be ordered by visiting the selected store. Orders typically take 3-7 days from date of order to be received at your selected store.

Ball Valve - Straight Handle - Forged Brass - 3/4" Threaded

icon-wishlist

Description

The John L. Schultz "Aqua-Dynamic" non-shock WOG 3/4" full port is fabricated with no-lead forged brass and features long lasting Teflon seats and a comfortable red vinyl handle. The easy one-quarter turn fully closed- or fully open-position straight galvanized handle provides full flow, delivering 150 PSI WSP steam and 600 PSI non-shock WOG at -20°F to 350°F temperature range. Threaded ends comply with ANSI B1.20.1; solder ends comply with ANSI B16.18, and the valve is CSA certified.

Product specifications

Style
Straight handle
Type
Threaded, full flow
Component
No-lead forged brass, vinyl
Diameter
3/4" threaded
Pressure
150 PSI WSP steam, 600 PSI non-shock WOG
